550T Double Girder Overhead Crane

Name: 550T Double Girder Overhead Crane
Brand: SANTO
Price: 6000 USD

Quality 550T Double Girder Overhead Crane for sale

Brand Name : SANTO

Model Number : QD, QDY, YZ, YZS, QL, QZ, QC

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1set

Price : USD6000-40000/set

Payment Terms : L/C, T/T

Supply Ability : 6000set/year

Delivery Time : 35-45 working days

Packaging Details : Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth

Product name : Double Girder Overhead Crane

Main electrical parts : Chint, or as requirments Siemens, Schneider

Span : 7-35m

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service

Feature : Electric Overhead Travelling Bridge Crane

Max. lifting height : 6m~30m

Rated lifting moment : Different

Max. lifting load : 800t

Application : workshop,Warehouse,plants,factory,warehouse and so on

Control method : Wireless Remote Control,Ground control,pendant control

Contact Now

20 ton 30 ton 50 ton 60 ton 100 ton up to 500 ton Electric Double Beam Girder Overhead Bridge Crane with Double hooks

Product Description:

Overhead Cranes can also be referred to as Bridge Cranes.

Using pre-engineered and bespoke components based on modular designs, we are able to deliver a large range of highly reliable cranes with capacities from 1 ton up to 550 ton SWL with single girder, double girder or underhung structures.

Our standard crane range uses our super efficient chain hoist, highly advanced wire rope hoist or built-up open winch hoist with competitive prices and very quick delivery times.

Santocranes' hoists and cranes have developed a strong reputation for reliability and endurance with an unparalleled record in a vast range of applications and environments worldwide.

Every function of the latest generation santo hoist has been reviewed and a whole series of innovations applied to provide new levels of user-friendliness and performance. The result is an easy to operate, high endurance hoist incorporating state-of-the-art technology. The santo wire rope hoist has been designed to fulfill expectations and improve our customer’s productivity. With exceptionally safe and efficient lifting, the new santo hoist sets the benchmarks in the crane industry and provides a series of unique benefits for the user. The santo hoist epitomises intelligent design for easy load handling and we think you will agree represents unbeatable value for money and a serious investment.

Features:

All the standards which required for the crane is the Chinese national standard, and we also passed the CE, ISO, and BV certificates .The quality is great.

Appearance: compact size, building headroom low light self-weight.
Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
Temperature: - 25°c ~ 40°c
Bridge crane working duty : A3 ~ A8

Parameter:

QSWL Gn rated lifting capacity				t	32/10 (we can supply up to 550 ton)
Opertional method				m/min	Remote or Pendant control/Cabin Control
Speed	Main.hook lifting				3(0.3/3)
	Aux.hook lifting				7(7/0.7)
	Cross travelling				20
	Long travelling		Remote or Pendant control		20/30
			Cabin Control		30/40
Motor	Main.hook lifting			kw	ZDX62-6/18.5,(ZDS2.2/18.5)
	Aux.hook lifting				ZD151-4/13(ZDS1-1.5/13)
	Cross travelling				ZDY123-4/2.2x2
	Long travelling		Remote or Pendant control		ZDY123-4/2.2x2		ZDY131-4/3x2
			Cabin Control		ZDR112L2-4/3.0x2			ZDR125-4/4.6x2
Electric Hoist					WH164;CD1(MD1)
Lifting Height				m	9;12;16;24
Duty Class					A3--A5
Power source					3-phase A.C. 50Hz;380V
Track recommended					43KG/M
Span				m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Max.wheel presure				KN	167	184	196	206	215	224	233
Crane weight		Remote or Pendant control		kg	12530	14660	16360	18870	21650	24260	27060
		Cabin Control		kg	13430	15560	17260	19770	22550	25160	27960
Basic dimensions		B		mm	5070--5960			5572--6222
		W		mm	3600~4500
		Wc		mm	2200-2900
		K		mm	1600~2500
		H		mm	1900
		H1		mm	765
		H2		mm	170	270	370	470	570	670	770
		H3		mm	2395	2495	2595	2695	2795	2895	2995
		H4		mm	-700
		b		mm	230
		S1		mm	1100
		S2		mm	1600

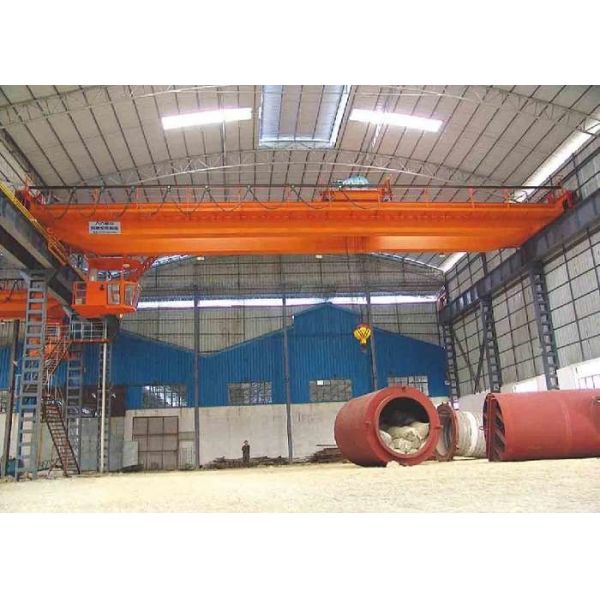

550T Double Girder Overhead Crane

Spare parts we purchases:

No.	Items	COOPERATE Manufacturers
1	Motor	Sino-US KDS Motor Factory Nanjing Special Motor Factory Wuxi XINDALI Motor Factory ABB-China SEW(Gearmotor)-German
2	Gear Box	SEW-German Jiangsu Tailong Reducer Factory Jiangsu Taixing Reducer Factory Shanghai TGS Transmission Equipment Co., Ltd. GUOTAI
3	Wire Rope	Italy Redaelli S.p.A. Nantong Wire Rope Factory
4	Electrical	CHINT Schneider SIMENS
5	Converter	Yaskawa Electric (China) Co., Ltd. Mitsubishi Schneider ABB-China
6	Controller	Lee's Hi-Tech Enterprise Co.,LTD. HBC-German Jay-Electronique
7.	Shaft	China: HRB/LYC/ZWZ SKF/FAG/NTN/IKO/KOYO/NACHI/TIMKEN

550T Double Girder Overhead Crane

Free inquiry:

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

550T Double Girder Overhead Crane

Load Capacity, ton:	(_______)
Span, S, m:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross & Long travel speed:	(_______)
Rail supply needed	(_______)
Power supply system needed	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}

{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: If yes, please note the Long travel length}

{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.

Looking forward your kindly inquiry and hope to help your strong business in near future!
